UV Curing machine (LED Type)
Item UV SPOT Curing machine
Model SP-LED-1(2BR)
Wavelength 365, 405nm
UV intensity 10000mW (3Ø/WD10)
Beam form DOT


  • Detailed specifications
    Item UV SPOT Curing machine LED Type
    Model SP-LED-1(2BR)
    Wavelength 365, 405nm Optional
    UV intensity 10000mW (3Ø/WD10) UIT250
    Beam form DOT
    Spot Diameter 3.4.5.6.8.10.12Ø Optional
    Heads’ QTY 1Q ~ 4Q (cable length 2M, extendable) Optional
    Power Spec 100~220V, 3A, 50~60Hz
    Dimension 100(W)*180(D)*155(H)
    Usage OLED.LCD.VCM. Adhesive bonding of precision parts
Item UV SPOT Curing machine
Model SP-LED-1(3BR)
Wavelength 365, 405nm
UV intensity 10000mW (3Ø/WD10)
Beam form DOT


  • Detailed specifications
    Item UV SPOT Curing machine LED Type
    Model SP-LED-1(3BR)
    Wavelength 365, 405nm Optional
    UV intensity 10000mW (3Ø/WD10) UIT250
    Beam form DOT
    Spot Diameter 3.4.5.6.8.10.12Ø Optional
    Heads’ QTY 1Q ~ 4Q (cable length 2M, extendable) Optional
    Power Spec 100~220V, 3A, 50~60Hz
    Dimension 100(W)*180(D)*155(H)
    Usage OLED.LCD.VCM. Adhesive bonding of precision parts
Item UV SPOT Curing machine
Model SP-LED-1(4BR)
Wavelength 365, 405nm
UV intensity 10000mW (3Ø/WD10)
Beam form DOT


  • Detailed specifications
    Item UV SPOT Curing machine LED Type
    Model SP-LED-1(4BR)
    Wavelength 365, 405nm Optional
    UV intensity 10000mW (3Ø/WD10) UIT250
    Beam form DOT
    Spot Diameter 3.4.5.6.8.10.12Ø Optional
    Heads’ QTY 1Q ~ 4Q (cable length 2M, extendable) Optional
    Power Spec 100~220V, 3A, 50~60Hz
    Dimension 100(W)*180(D)*155(H)
    Usage OLED.LCD.VCM. Adhesive bonding of precision parts

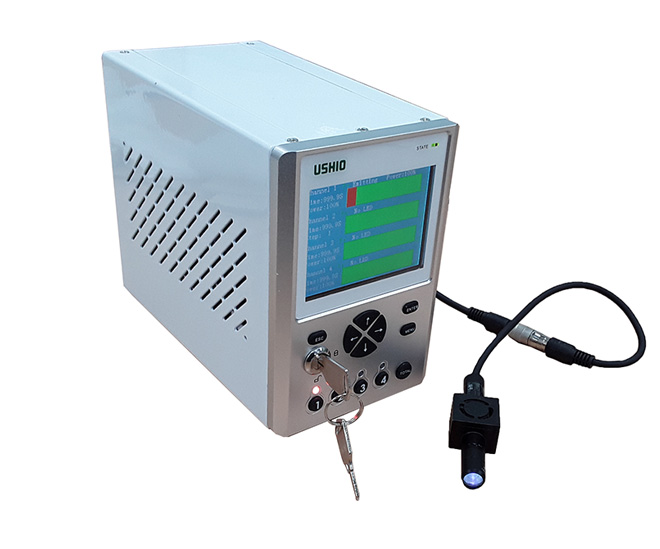

Item UV SPOT Curing machine
Model SP-LED-1(F1BR). FAN Type
Wavelength 365, 405nm
UV intensity 10000mW (3Ø/WD10)
Beam form DOT


  • Detailed specifications
    Item UV SPOT Curing machine LED Type
    Model SP-LED-1(F1BR). FAN Type
    Wavelength 365, 405nm Optional
    UV intensity 10000mW (3Ø/WD10) UIT250
    Beam form DOT
    Spot Diameter 3.4.5.6.8.10.12Ø Optional
    Heads’ QTY 1Q ~ 4Q (cable length 2M, extendable) Optional
    Power Spec 100~220V, 3A, 50~60Hz
    Dimension 100(W)*180(D)*155(H)
    Usage OLED.LCD.VCM. Adhesive bonding of precision parts

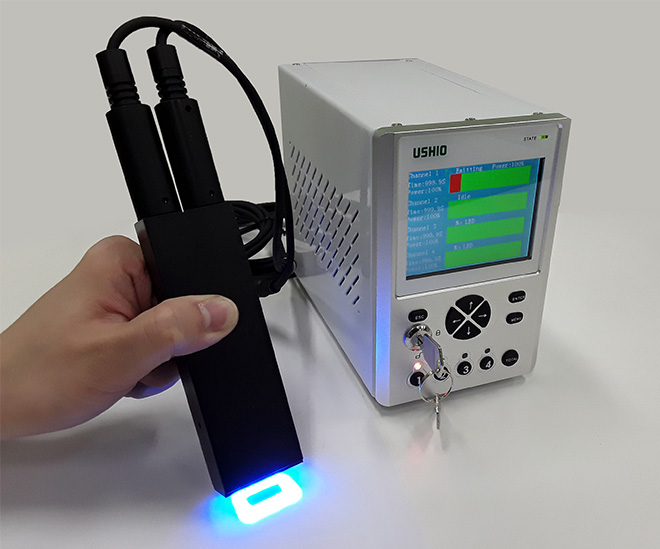

Item UV SPOT Curing machine
Model SP-LED-1(Rectangle)
Wavelength 365, 405nm
UV intensity 100~200mW (20(W)*12(D))
Beam form Rectangle, Donut type


  • Detailed specifications
    Item UV SPOT Curing machine LED Type
    Model SP-LED-1(Rectangle)
    Wavelength 365, 405nm Optional
    UV intensity 100~200mW (20(W)*12(D)) UIT250
    Beam form Rectangle, Donut type custom order
    Spot Diameter Custom made specifications custom order
    Heads’ QTY 1Q ~ 4Q (cable length 2M, extendable) Optional
    Power Spec 100~220V, 3A, 50~60Hz
    Dimension 100(W)*180(D)*155(H)
    Usage OLED.LCD.VCM. Adhesive bonding of precision parts
Item UV SPOT Curing machine
Model SP-LED-1(L50)
Wavelength 365, 405nm
UV intensity 1000mW(5*50/WD10)
Beam form LINE


  • Detailed specifications
    Item UV SPOT Curing machine LED Type
    Model SP-LED-1(L50)
    Wavelength 365, 405nm Optional
    UV intensity 1000mW(5*50/WD10) UIT250
    Beam form LINE
    Spot Diameter 50(W)*5(D)
    Heads’ QTY 2Q (cable length 2M, extendable)
    Power Spec 100~220V, 3A, 50~60Hz
    Dimension 100(W)*180(D)*155(H)
    Usage OLED.LCD.VCM. Adhesive bonding of precision parts
